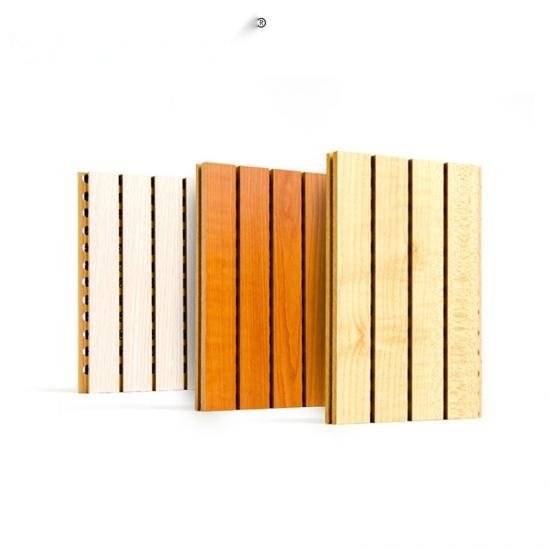

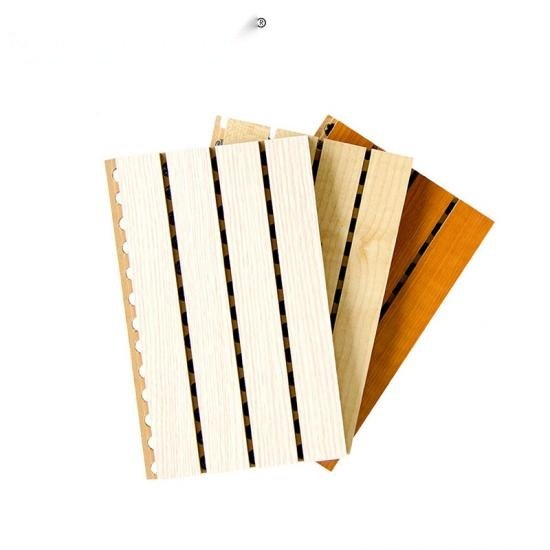

Grooved Acoustic Wood Wall Panels

KEMAI Acoustics is a well-known leader in specialty Grooved Acoustic Wood Wall Panels systems. These sound proof panels manufactured from MDF fiberboard wood panels.

Item NO.MDF Grooved

Lead Time1~7days

Product OrginGuangdong, China

Shipping PortFoshan, Guangzhou, Shenzhen

ColorCustomizable

MOQ100 Pieces

goods stock1000

MOQ 100 sqm

The Grooved Acoustic Wood Wall Panel is made of high quality MDF board. According to the customer’s acoustic and decoration requirement, our grooved wooden acoustic panel can equipped with outstanding environmental, flame retardant and waterproof function, even can with various colors and finish choices.

Product Type	Grooved Acoustic Wood Wall Panels
Standard Model	59/5 60/4 28/4 29/3 13/3 14/2
Non-Standard Model	40/3 38.5/4 18/3 17/4 8/3 8/2 5/3 6/2
Material	High quality MDF board
Basic Material	General, Economic, Fireproof, Moisture-proof, Composite,Magnesium, Solid wood etc.
Finish	Melamine, Natural Wooden Veneer, Fireproof board, Painting,Metal, Technology veneer, Leather etc.
Color	Color chart or customized
Size	1332440 mm / 1972440 mm
Thickness	12mm / 15mm / 18mm
Fireproof Grade	B
ECO Grade	E
Application	Gymnasium, Meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall,etc.
Service	1.Support OEM&ODM service. 2.Provide acoustic product design services. 3.One-stop acoustic environment overall solution,including:Engineering design, product manufacturing and engineering installation.

1> Grooved Acoustic Wood Wall Panels is a kind of slit resonance absorption material which is made from high density panel with grooves on the surface and perforated holes at the back side.

2> It has strong selection on the sound spectrum and particular great performance on the middle and low frequency.

3> It has better sound absorption effect on medium and high frequency if there is sound absorption cotton filled at the back side cavity.

4> The design can be custom made.

1> First fix the aluminum profile onto the wooden frame or bottom board, and their distance suggested 6about 600mm.

2> Filled the 32-64kg/m density acoustic foam among aluminum profiles.

3> Use the clips to fix the perforated acoustic panel to the aluminum profile.

4> When install several acoustic panel, the distance between noses to noses suggested 2-3mm.

5> If install the acoustic panel in the horizontal way, then the notch of the panel should face down, and it need to be fixed tight with clips. After that install pieces and pieces of acoustic panel onto the lowest one.
